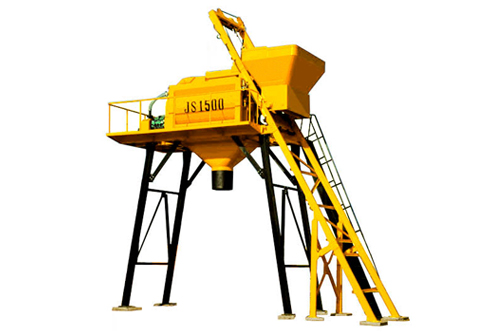

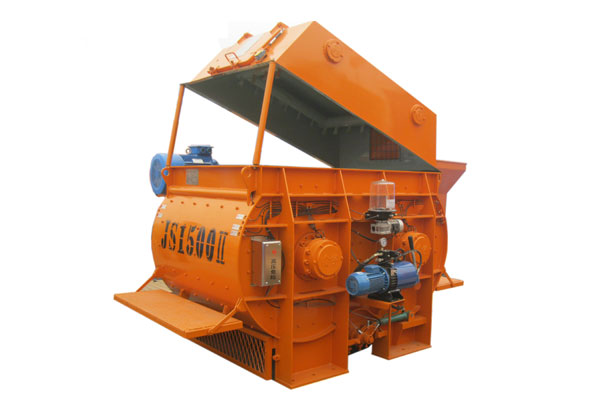

JS1500 Concrete Mixer

JS500-1500 Concrete Mixer developed by our company is widely used by our global users. This machine can be used as a separated mixing machine or used as the supporting machine of the ready mix concrete plant. When matched with batching plant, they can form a simple mixing plant.


Features and Benefits:

Features of JS1500 Concrete Mixers:

1. As a miniature double-horizontal-shaft forced type concrete mixer, this concrete mixing machine features short mixing time, good homogeneity and reliable operation.
2. Shaft tip is sealed by floating-ring, which is reliable and easy to maintain and replace.

Application of JS1500 Concrete Mixers:
This concrete mixer can be used to mix stiff-consistency concrete, semi-stiff-consistency concrete, light weight aggregate concrete and so on.

Technical Specification of JS1500 Concrete Mixers:

Model: JS1500
Discharge volume: 1500L
Charging volume: 2400L
Theoretical capacity: ≥75m3
Aggregate sizes: ≤60/80mm
Working circle: 60s
Mixing blade
Speed: 23r/min
Quantity: 2×9
Mixing motor
Model: Y225M-4
Power: 45 kw
Lifting motor
Model: YZE180M-4
Power: 18.5 kw
Pump motor
Model: KQW65-100
Power: 3 kw
Weight: 10960kg
Dimensions (L x W x H): 5058x2250x2440 mm
