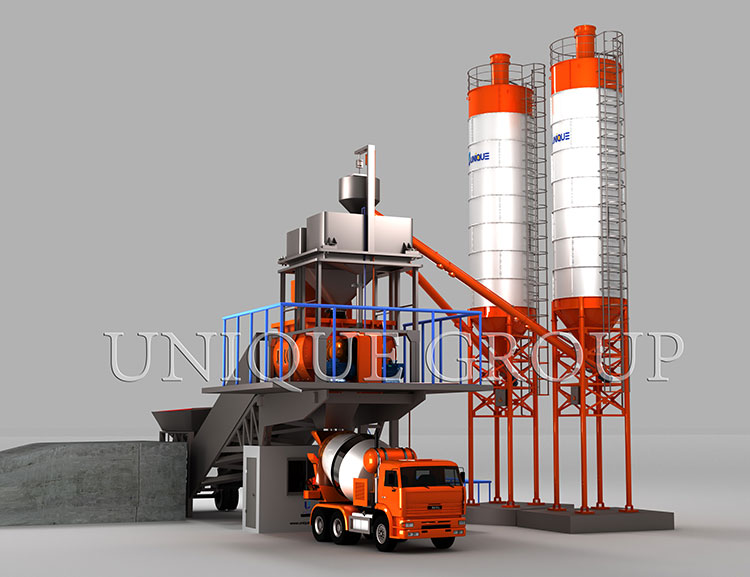

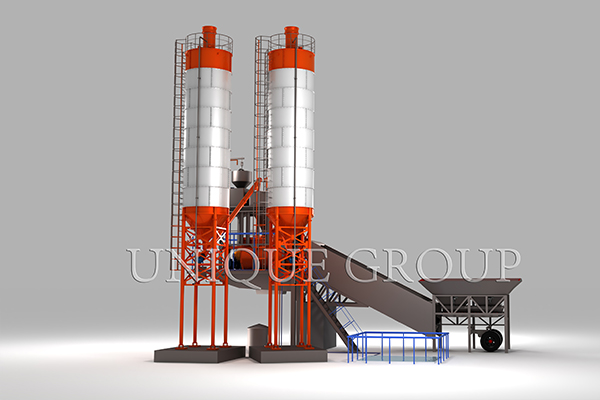

UTM-50 Mobile Concrete Mixing Plant

Mobile concrete plant can be stopped to run or be pulled away easily, which is convenient to move and easy to install. It is can applied to various construction sites like road surface, bridges, dams and airport, and also like architectural workings, concrete product plant and commercial concrete production.

Features and Benefits:

General Information of UTM-50 Mobile Concrete Mixing Plant:

Capacity: 50m3/h
Mixing Time: 60 S
Max Aggregate Size: 60/80 mm
Discharging Height: 3800 mm
Total Power: 85kw
Total Weight: 20 Ton
Total Dimensions: 18850×4150×8079 mm
Transportation: Double Axle Chassis

Technical Parameters of UTM-50 Mobile Concrete Mixing Plant:

1. MIXING SYSTEM
Twin Shaft Concrete Mixer: JS1000
Volume: 1600 L
Capacity: 1000 L
Paddle quantity: 16 pieces
Paddle Speed: 25.5 r/min
Mixing Motor: 37kw
2. AGGREGATE SYSTEM
2.1Aggregate Batcher   PLD1600
Volume: 4×8m3=32
Sort of aggregate: 4
Capacity:  80 m3/h
Power: 11 kw
Sand vibrator: 0.37kw×2
2.2. Aggregate Belt Conveyor      1 unit
Width800 mm
Length: 18456mm
Speed: 1.6 m/s
Motor: 7.5 kw
3. CEMENT SYSTEM
Cement Silo: 30 Ton
Cement Screw Feeder: 2 units
Diameter: Φ219mm
Length: 11.8 m
4. ADDITIVE SYSTEM
Additive silo capacity: 1 m3
Pneumatic valve: Φ50 mm
Pump: 3kw
5. WATER SYSTEM
Submersible pump: 3kw
Water pump: 0.75kw
Water tank: 3 m3
6. AIR SYSTEM
Air Compressor: 1 unit
Power: 7.5kw
Pressure: 0.7Mpa
Airflew: 0.8 m3/min
7. WEIGHING SYSTEM:
7.1 Aggregate weighing     1 unit
Weighing Capacity: 1.6 m3
Precision: ±2%
7.2 Cement weighing    1 unit
    Weighing Capacity: 1m3
Precision: ±1%
7.3 Water Weighing      1 unit
Weighing Capacity: 150 kg
Precision: ±1%
7.4 Additive Weighing     1 unit
Weighing Capacity: 40 kg
Precision: ±1%
8. CONTROL SYSTEM:
PLC command and control operation
Main electrical components: Schneider
17’’ colorful computer
Manuel and Auto Control is freely changeable
