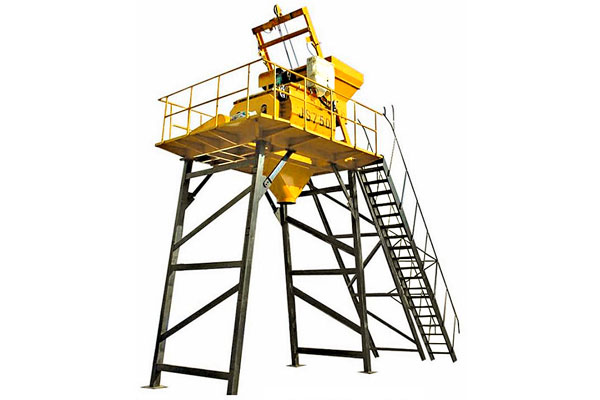

JS750 Concrete Mixer

JS500-1500 Concrete Mixer developed by our company is widely used by our global users. This machine can be used as a separated mixing machine or used as the supporting machine of the ready mix concrete plant. When matched with batching plant, they can form a simple mixing plant.

Features and Benefits:

Features of JS750 Concrete Mixers:

1. As a miniature double-horizontal-shaft forced type concrete mixer, this concrete mixing machine features short mixing time, good homogeneity and reliable operation.

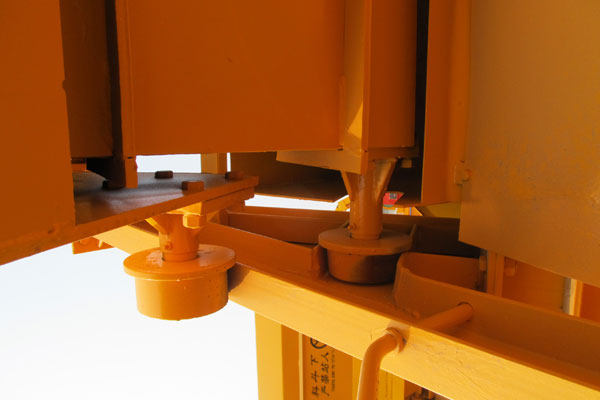

2. Shaft tip is sealed by floating-ring, which is reliable and easy to maintain and replace.

Application of JS750 Concrete Mixers:
This concrete mixer can be used to mix stiff-consistency concrete, semi-stiff-consistency concrete, light weight aggregate concrete and so on.

Technical Specification of JS750 Concrete Mixers:

Model: JS750
Discharge volume: 750L
Charging volume: 1200L
Theoretical capacity: ≥35m3
Aggregate sizes: ≤60/80m
Working circle: 60s
Mixing blade
Speed: 30.5r/min
Quantity: 2×8
Mixing motor
Model: Y200L-4
Power: 30 kw
Lifting motor
Model: YEZ132M-4
Power: 7.5 kw
Pump motor
Model: 65DWB35-5
Power: 1.1 kw
Weight: 6150kg
Dimensions (L x W x H): 4550x2250x2450 mm
